Inserting and editing diagrams

Google Slides has a variety of premade diagrams that are easy to insert into your presentation. There are a lot of fully editable presets to choose from, and they can be used to display all kinds of information.

Watch the video below to learn how to insert and edit diagrams.

To insert a diagram:

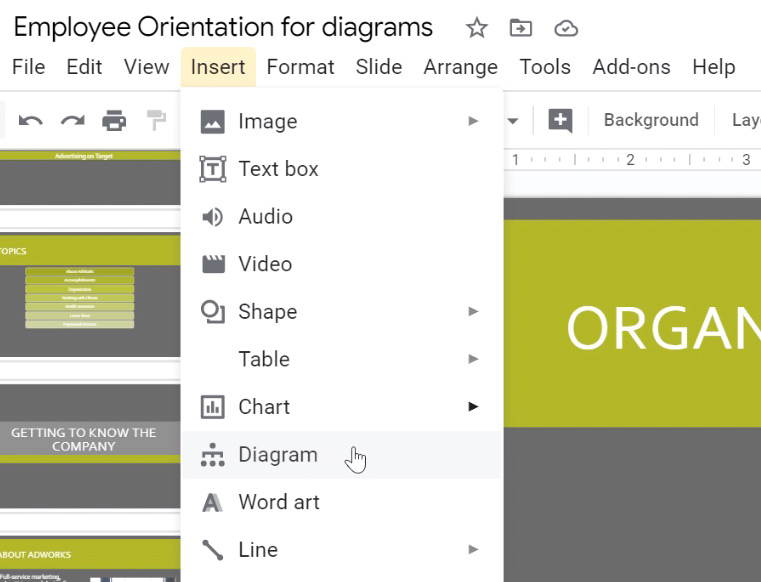

  1. Go to Insert, then Diagram.
    going to insert then diagram

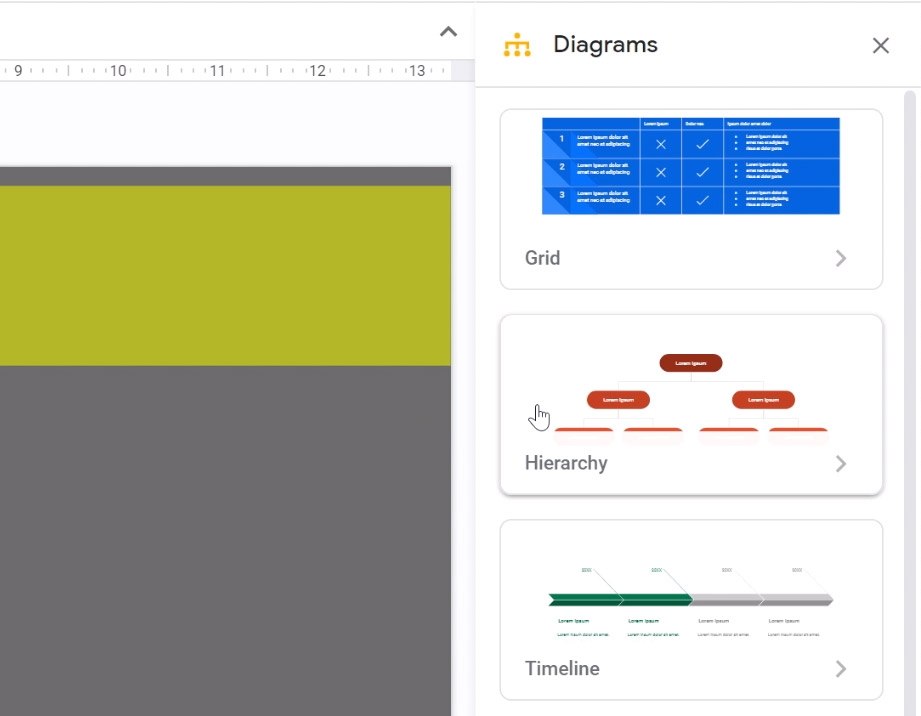

  2. A new pane opens with several different types of diagrams that you can choose from. Choose the style that best visualizes what you are trying to communicate. In our example, we are going to click Hierarchy.
    clicking hierarchy

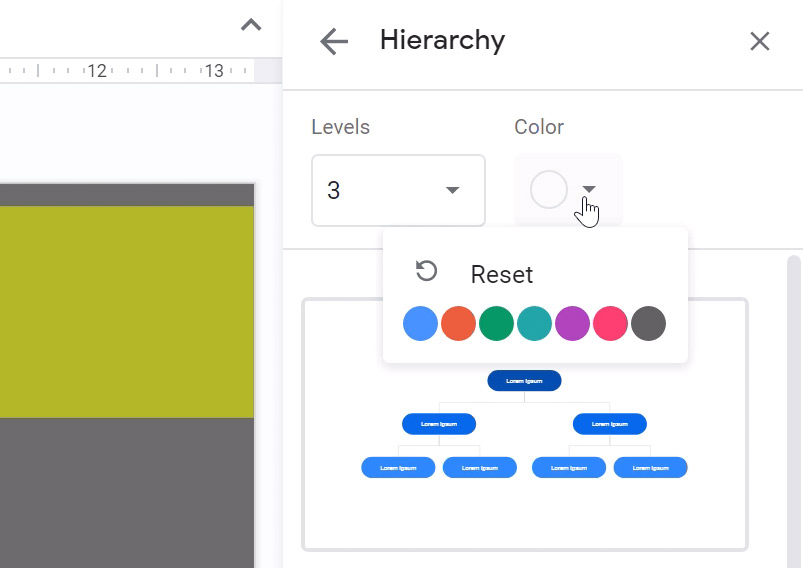

  3. At the top, you can change the color and the number of levels in the diagram.
    changing levels and color

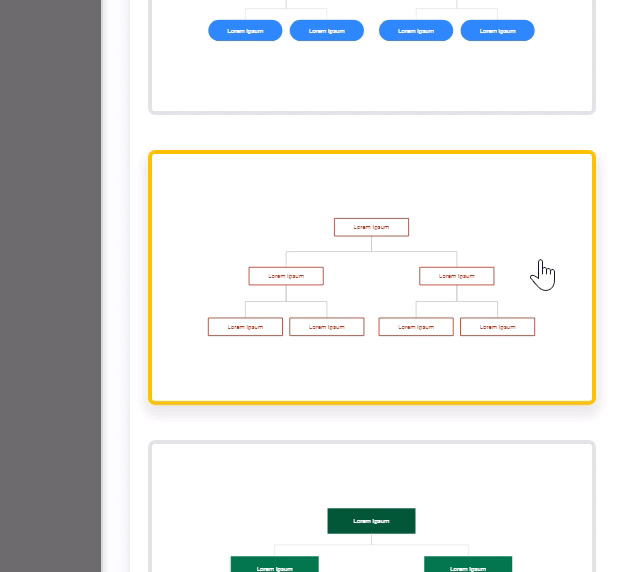

  4. Click a diagram to add it to your slide.
    clicking a diagram to add it

Editing diagrams

We know that learning how to edit diagrams in Google Slides can be tricky. In this lesson, we try to show you every step of the process. If you have trouble following along with our example, you can try watching the video at the top of the page. Sometimes it's helpful to see the process in action.

We hope that by the end of this lesson you'll know the basics of how to select, move, and edit different parts of the diagram. After you complete the lesson, we encourage you to continue practicing on your own. Play with your diagrams and see what you can create!

To move the diagram:

  1. Select the whole diagram by clicking an empty spot on the slide and dragging a box around all of the elements in the diagram.
    selecting the whole diagram

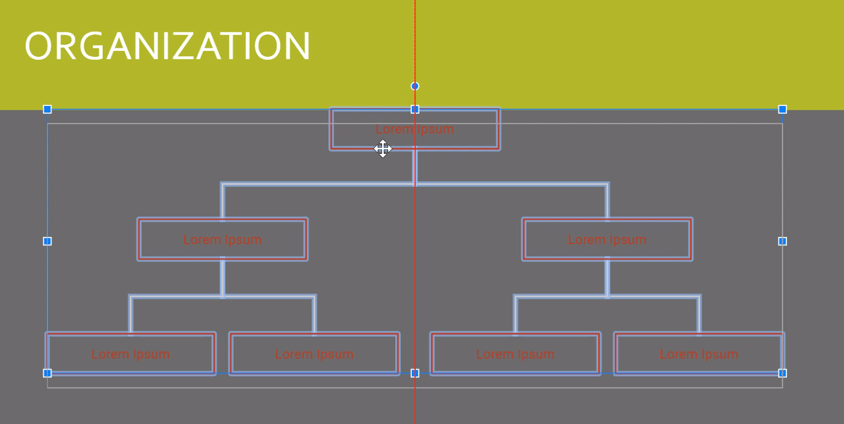

  2. Click and drag one of the selected elements to move the whole diagram.
    moving the diagram

To change the border color:

With the whole diagram still selected, click Border color and choose the color that you want. Note that this changes the color of the borders and of the lines connecting the boxes, but not of the text.

changing the border color

To change the text color:

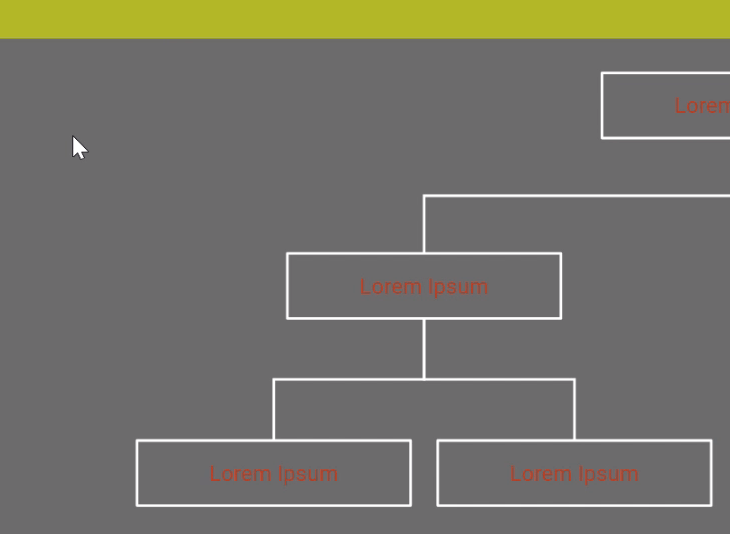

  1. To be able to change the text color, you need to select just the text boxes and not any of the connecting lines. Start by clicking an empty spot on the slide to deselect everything.
    clicking an empty spot to deselect

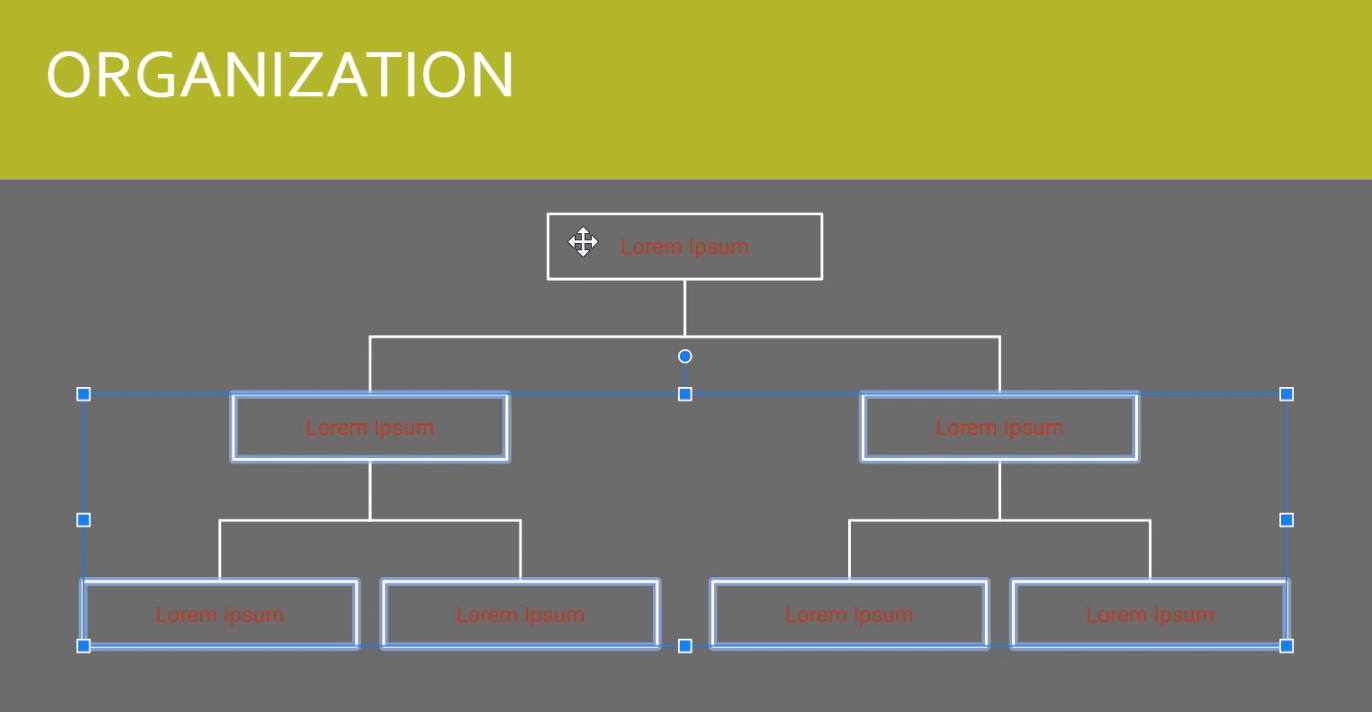

  2. Hold down the Shift key and click each text box. Holding the Shift key and clicking each item individually makes it easier to only select exactly what you want.
    selecting each text box

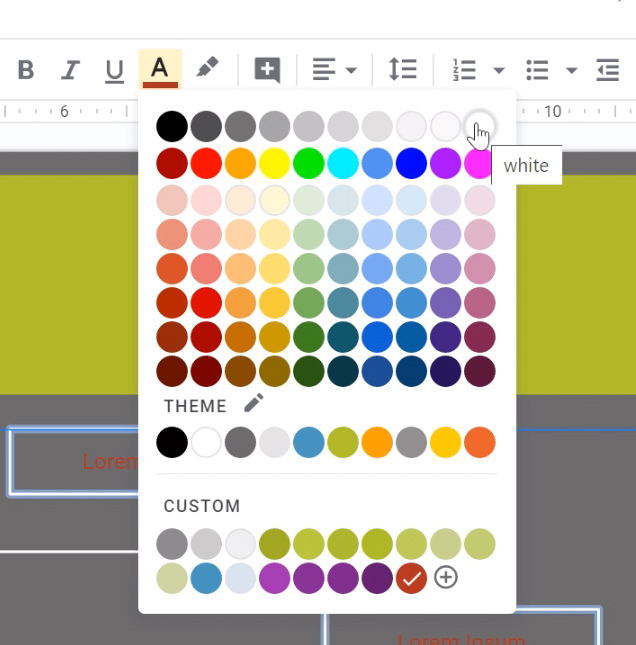

  3. With just the text boxes selected, you can now click Text color and choose the color that you want.
    changing the text color

To edit the content of the diagram:

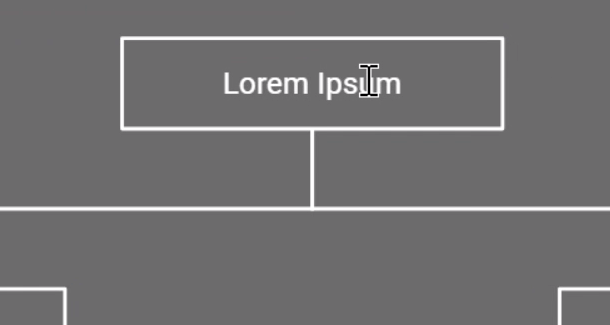

  1. Make sure that nothing is selected, then click the text that you want to edit.
    clicking into a text box

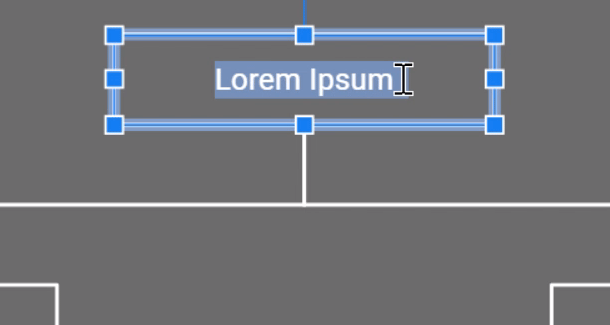

  2. The insertion point appears, and you can make your edits.
    editing the text
  3. When you're done, click an empty area to deselect the text box.
    deselect the text box

To rearrange the diagram:

In our example, we need to make a structural change to the diagram. Jim Franks should actually be underneath Luiz Ramirez.

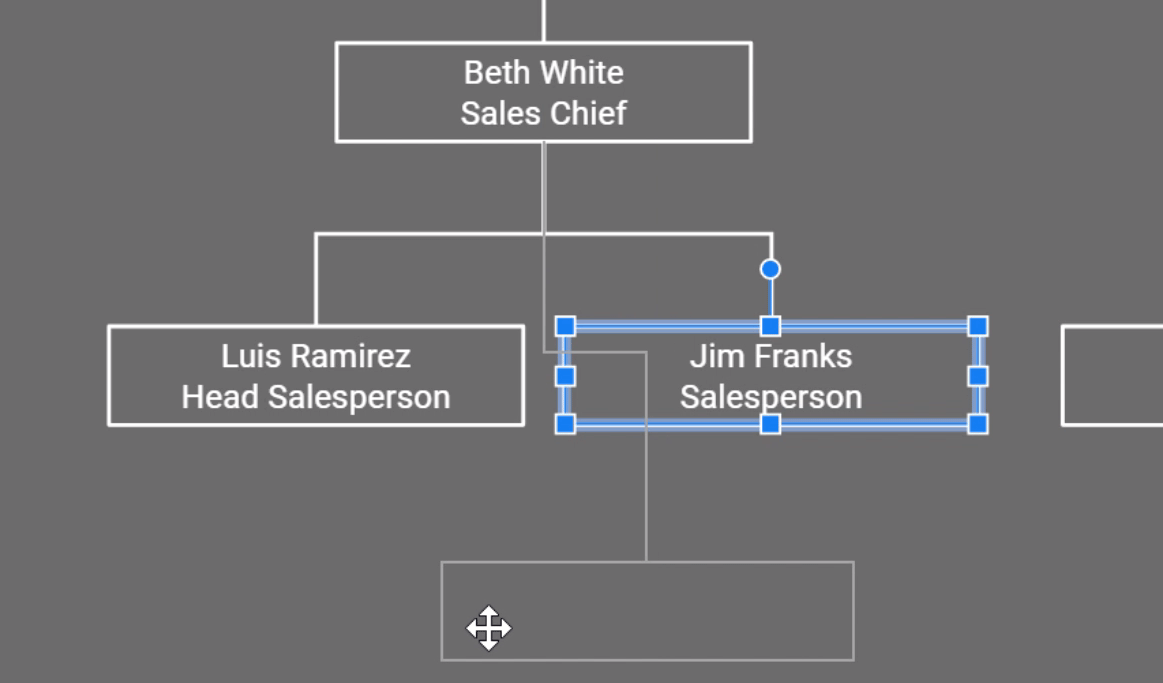

  1. To move a box, click and drag it to where you want it.
    moving a text box

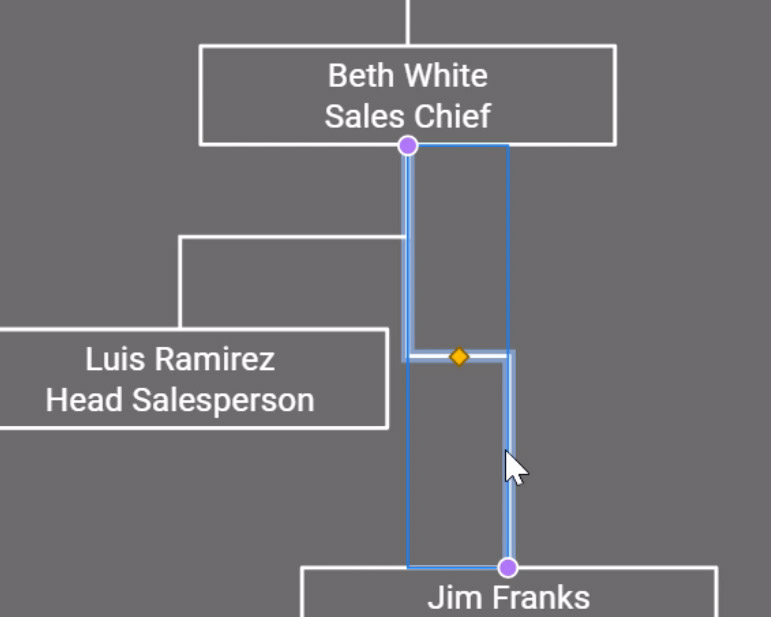

  2. Click on the line to select it. Handles will appear at either end.
    clicking the line to select it

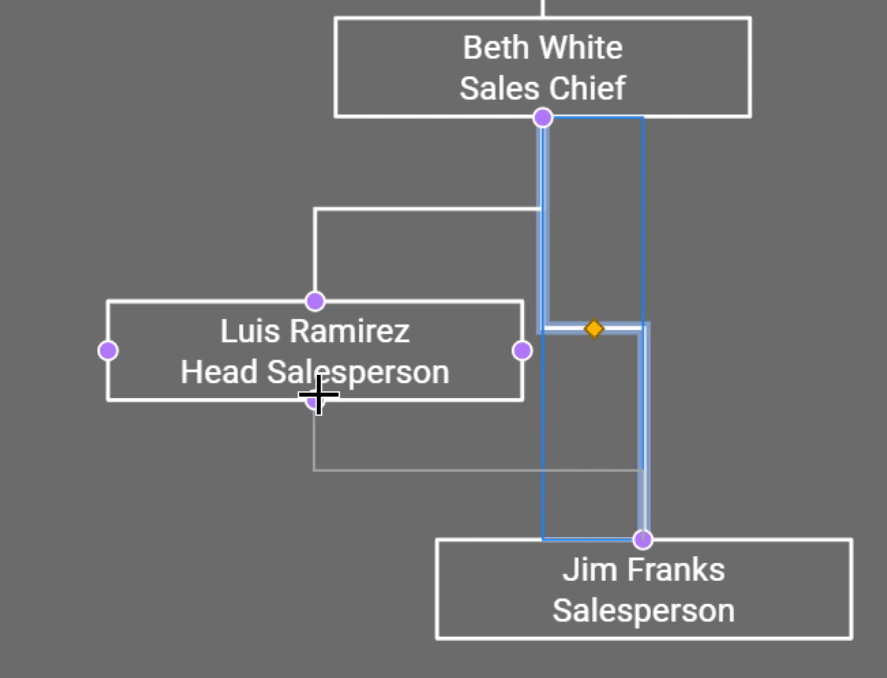

  3. Click and drag the handle that you want to move. As you move over a box, anchor points appear. Hover over an anchor point and release the mouse to connect the boxes.
    moving a line onto an anchor

To add a box to the diagram:

You can use the drawing tools to create a new box, but it's usually easier to copy an existing box. Copying an existing box ensures that the formatting will be consistent.

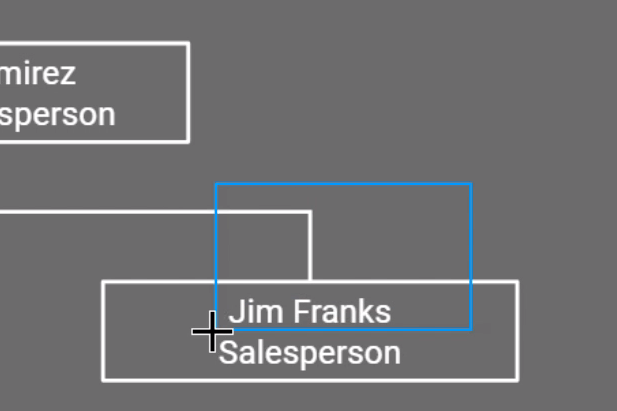

  1. Click and drag to draw a selection box around a box and its connecting line.
    selecting a box and a line

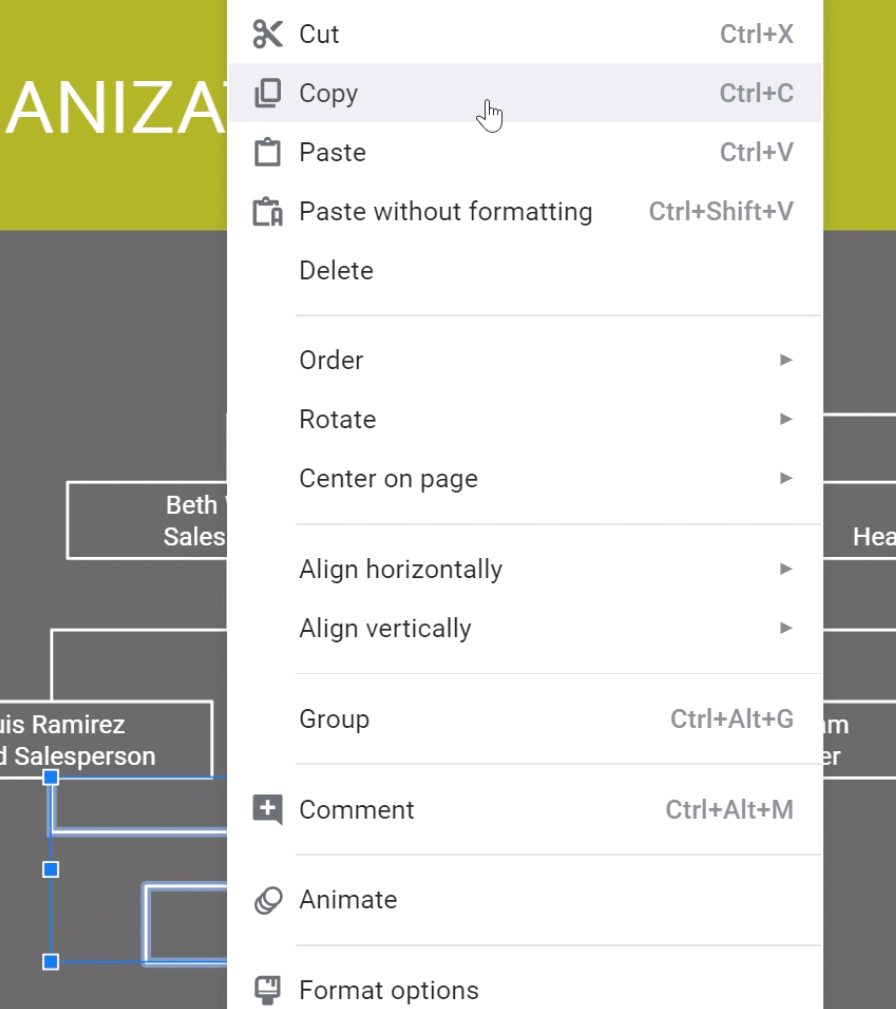

  2. Right-click on one of the selected elements and choose Copy.
    clicking copy

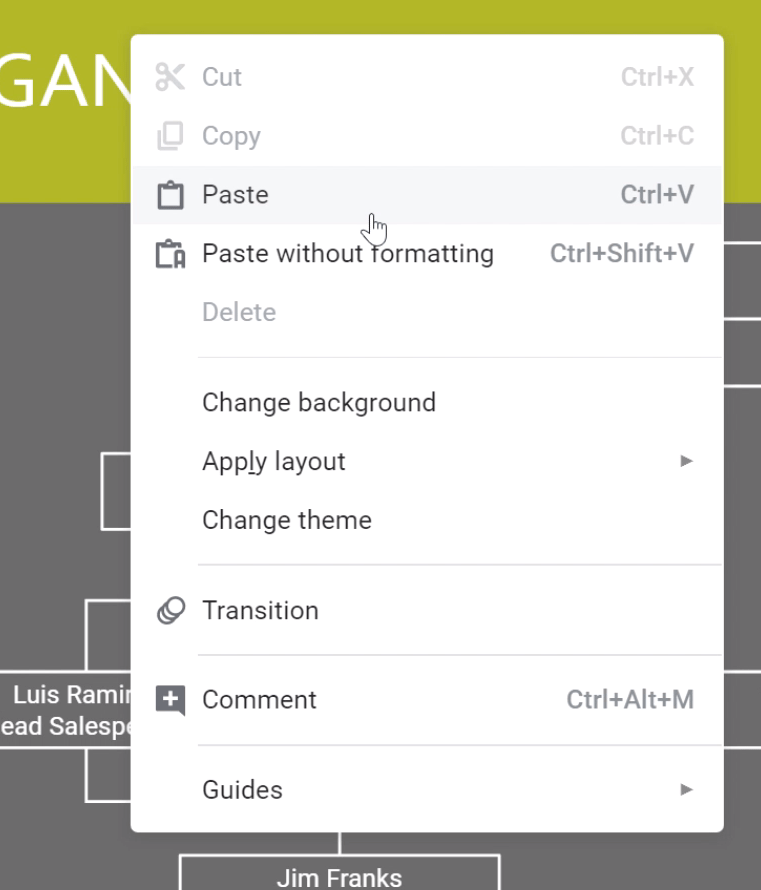

  3. Right-click anywhere on the slide and choose Paste.
    clicking paste

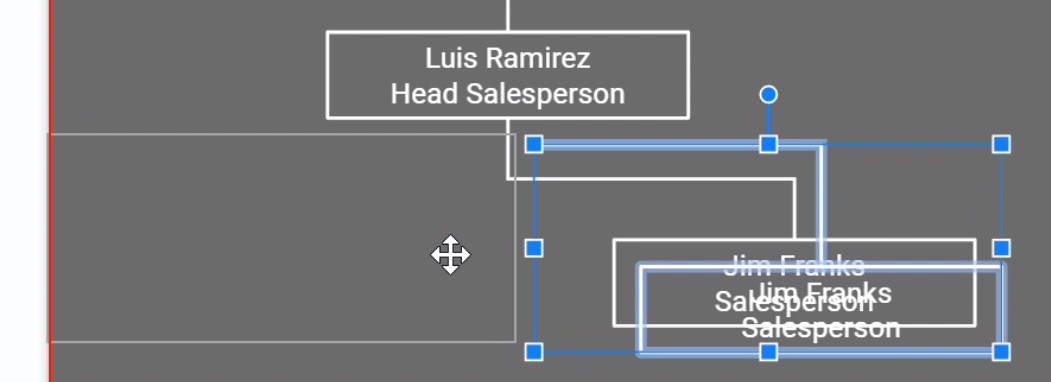

  4. Click and drag the new box to move it.
    moving the new box

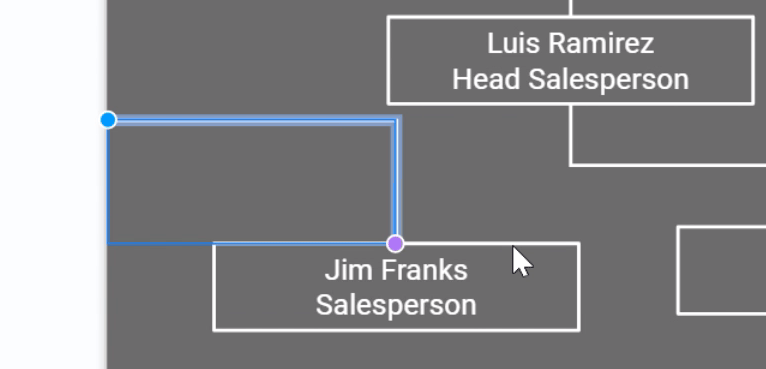

  5. Once you've moved the box to where you want it, hold down the Shift key and click the box. This will deselect the box, leaving just the line selected.
    deselecting the box

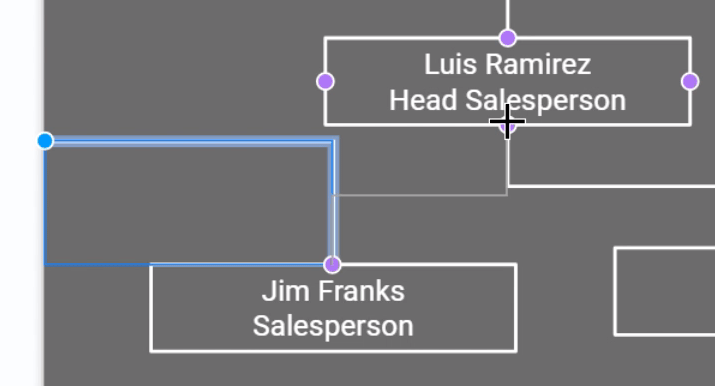

  6. Click and drag the floating handle. Move it to an anchor point on another box.
    moving a floating handle to a box

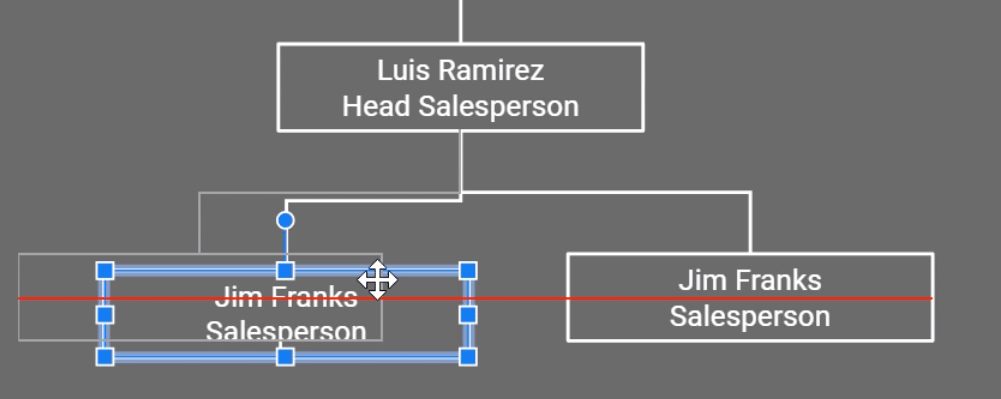

  7. Once everything is connected, you can reposition the elements as needed.
    repositioning elements

As with most skills, learning to edit diagrams can be frustrating, but with some practice, you'll be able to create diagrams that look great and communicate what they're supposed to.
