How to Build a Fancy EMP Generator

Last Updated: November 2, 2020

You've seen EMPs in movies: the guy pushes a switch, there's a big flash and everything turns off. Well, now you can do it as well! Here's two methods of generating an electromagnetic pulse: the first you can do at home with some electronics components; the second requires substantial wealth and power.

Method 1

Method 1 of 2:

Home Method

1

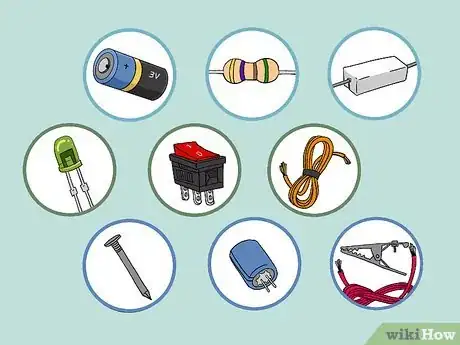

Obtain the components. This EMP generator will require: a 3V power supply, a 470 ohm resistor, a resistor of resistance R, an LED, a single pole double throw switch (look it up), a length of insulated wire, a big iron nail (the bigger the better), and a super capacitor (available from Maplin for less than a tenner) of capacitance C. Oh, and enough wires and solder/crocodile clips to connect everything together.
2

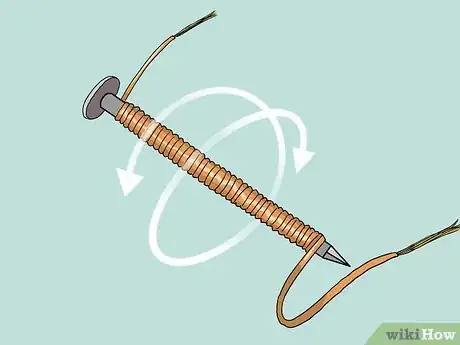

Wrap the wire around the nail. The more turns the better. Strip the insulation from the ends of the wire to allow you to connect it to the circuit.

Advertisement
3

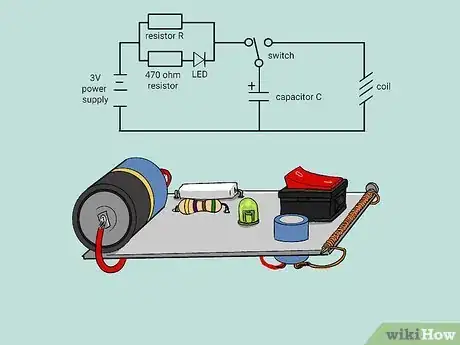

Wire up the circuit. The diagram pretty much says it all.
4
Flick the switch towards the battery to charge. This is what the LED is for: it indicates that the generator is charging. The charging time (in seconds) is about 5RC. This should influence your choice of resistor R. If you are using a 1F capacitor, a ten ohm resistor in place of R will give a charging time of about 50 seconds. If you use the same resistor with a 360F capacitor, it'll take 5 hours to charge. Choose the resistor with care.
5

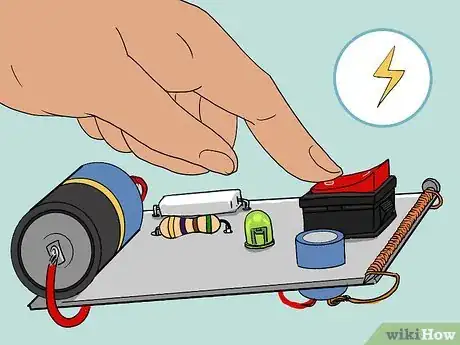

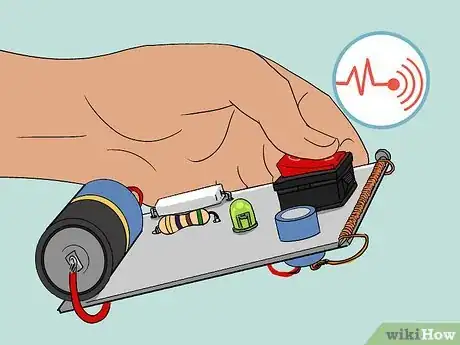

Flick the switch towards the coil to fire. If you get a really big switch and a servant with a lisp, it's the perfect opportunity to yell, "Igor, pull the switch!"

Method 2

Method 2 of 2:

Nuclear Method

This method is included for theory only! These EMPs can affect entire continents, so if you go around setting them off, a lot of people will get very angry.

1
Obtain the components. You will need enough metal to form a bomb casing, explosive lenses, enough enriched uranium or plutonium to produce (at least) a 10 kiloton explosion, and a rocket, launch pad and satellite to get the stuff into space. oh, almost forgot - you'll need a radio detonator for the explosives, with enough range to send a signal into space.
2

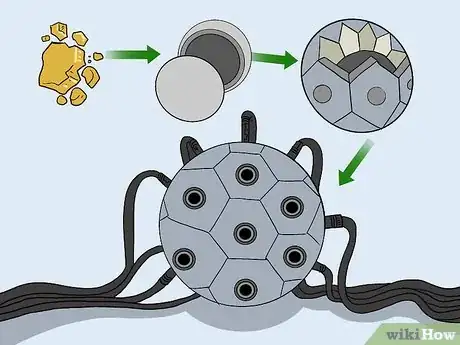

Use the first three components to build an atom bomb. The explosion from the bomb will create a very big, high-power EMP. Connect the bomb to the detonator.
3

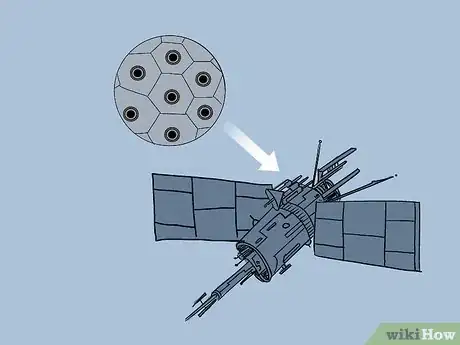

Put the bomb on the satellite.
4
Put the satellite on the rocket and launch the whole thing into a low-earth orbit.
5
Maneuver the satellite into position. Make sure that any space stations and other satellites and stuff are outside the blast radius.
6
Detonate the bomb. The gamma rays from the explosion will interact with the Earth's atmosphere and magnetic field and generate an EMP. If you build a big enough bomb, the EMP can affect an entire continent.
