How to Replace Brake Seals on Drum Brakes

On drum brakes, the seals become worn with usage and may fail. To avoid this safety hazard, the brake seals must be replaced. Instead of paying a professional auto mechanic to do this, you can do this for much cheaper on your own. The following is a guide on how to replace brake seals on drum brakes.

Steps

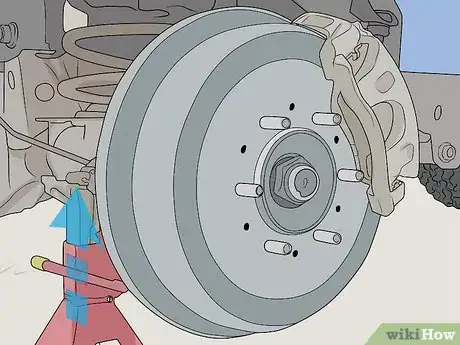

  1. Image titled Replace Brake Seals on Drum Brakes Step 1
    1
    Lift the vehicle at the drum brake.
    • Locate the drum brake in the vehicle's manual.
    • Use a floor jack to raise the vehicle. Follow all instructions that come with the jack.[1]
  2. Image titled Replace Brake Seals on Drum Brakes Step 2
    2
    Inspect the brake seals.
    • Locate the brake seals in the vehicle's manual.
    • Visually inspect them to verify that they are worn or destroyed.
    Advertisement

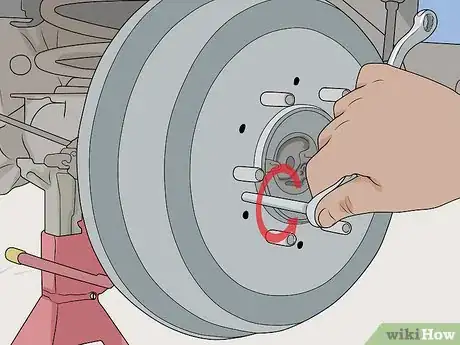

  3. Image titled Replace Brake Seals on Drum Brakes Step 3
    3
    Remove the brake wheel.
    • Locate this in the vehicle's manual.
    • Use a lug wrench to turn the lug nuts counterclockwise.
    • Take the brake wheel off and set it to the side.

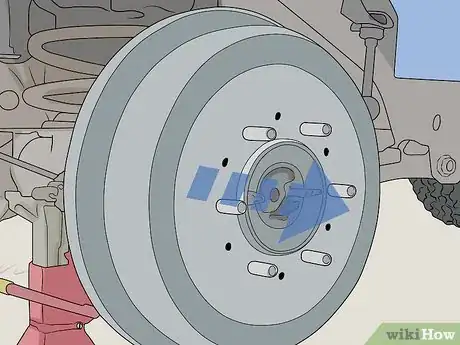

  4. Image titled Replace Brake Seals on Drum Brakes Step 4
    4
    Detach the brake drum.
    • Locate this and the keeper bolt in the vehicle's manual.
    • Turn the keeper bolt counterclockwise with a lug wrench.
    • Take the brake drum off and set it to the side.

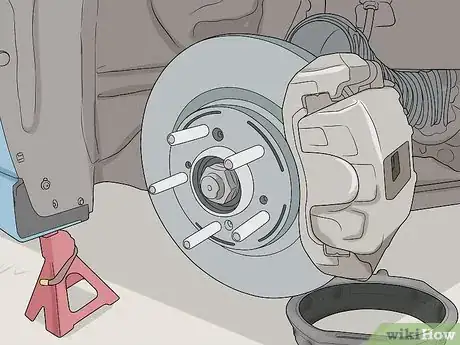

  5. Image titled Replace Brake Seals on Drum Brakes Step 5
    5
    Put a drain pan under the brake system.

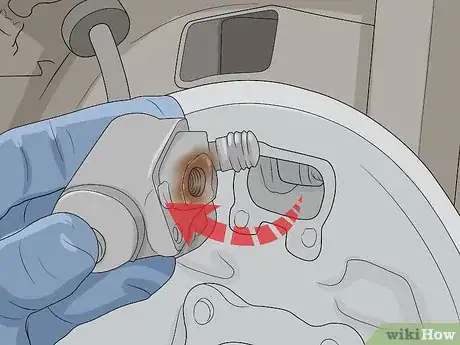

  6. Image titled Replace Brake Seals on Drum Brakes Step 6
    6
    Detach the wheel cylinder.
    • Locate this in the vehicle's manual.
    • Twist the retainer bolts counterclockwise.
    • Take the cylinder off and set it to the side.
    • Any leaking fluid should be placed in the drain pan.

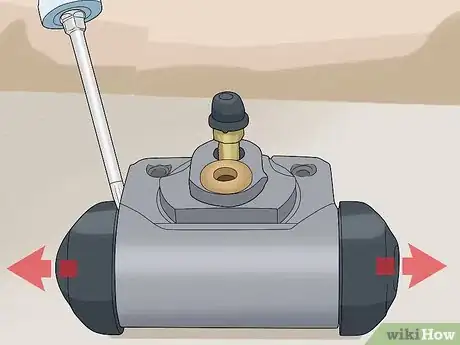

  7. Image titled Replace Brake Seals on Drum Brakes Step 7
    7
    Remove the wheel cylinder gaskets (seals) with a screwdriver.
    • Locate the gaskets in the vehicle's manual.
    • Pry them off with a screwdriver.

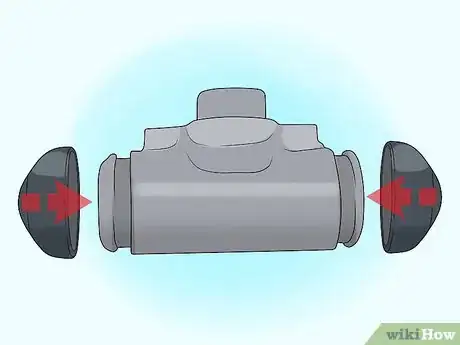

  8. Image titled Replace Brake Seals on Drum Brakes Step 8
    8
    Add new gaskets to the wheel cylinder.
    • Replace the worn gaskets with new seals.
    • Add them according to the instructions that come with the seals or according to the vehicle's manual.

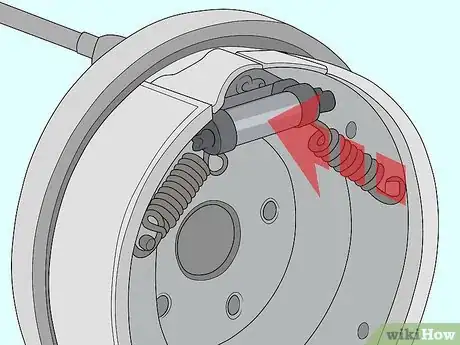

  9. Image titled Replace Brake Seals on Drum Brakes Step 9
    9
    Put the wheel cylinder back on.
    • Press it on the brake system.
    • Twist the retainer bolts clockwise.
  10. Image titled Replace Brake Seals on Drum Brakes Step 10
    10
    Reattach the brake drum.
    • Place it on the brake system in it's proper place.
    • Turn the keeper bolt clockwise.

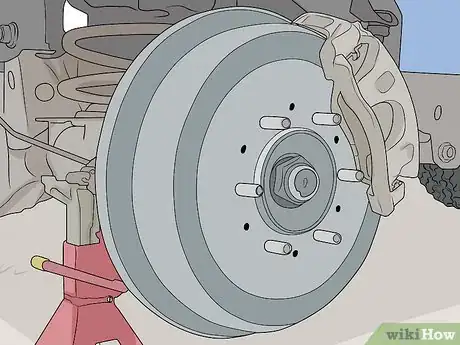

  11. Image titled Replace Brake Seals on Drum Brakes Step 11
    11
    Reattach the brake wheel.
    • Turn the lug nuts clockwise.

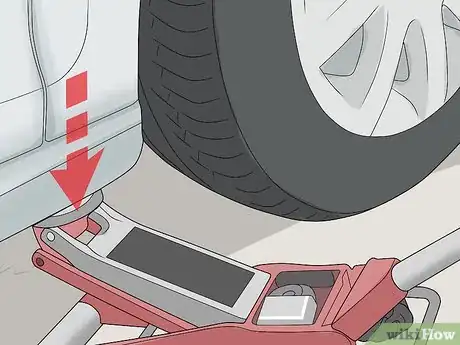

  12. Image titled Replace Brake Seals on Drum Brakes Step 12
    12
    Lower the vehicle on the floor jack.

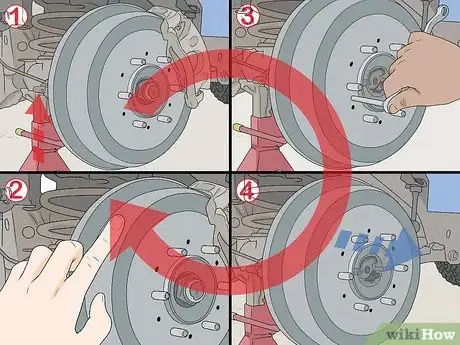

  13. Image titled Replace Brake Seals on Drum Brakes Step 13
    13
    Repeat this entire process (optional).
    • Repeat all steps if there are multiple drum brakes that have worn seals.

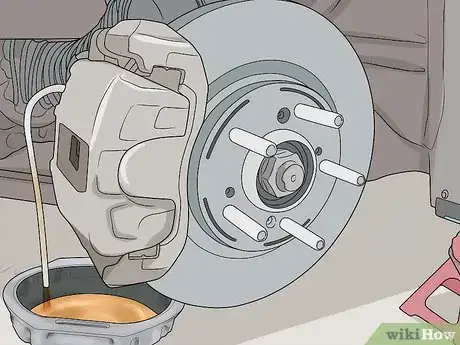

  14. Image titled Replace Brake Seals on Drum Brakes Step 14
    14
    Bleed the brake system.[2]
    • Turn 1 bleeder nipple counterclockwise. Locate it in the vehicle's manual.
    • Put a drain pan under the bleeder nipple.
    • Have a helper push the brake pedal with his or her foot.[3]
    • Pour new brake fluid into the master cylinder while your helper pushes the brake pedal. The master cylinder can be located in the vehicle's manual.
    • Turn the bleeder nipple clockwise to close it.
    • Repeat this process with all bleeder nipples.
    15. Advertisement

Community Q&A

  • Question
    Are seals pressed on a Jeep?
    Uglymug18
    Uglymug18
    Community Answer
    The seals are not pressed in. They fit very tightly, but they are not pressed in.
Advertisement

Warnings

  • Do not smoke or drink alcoholic beverages while working on a vehicle. Doing so could cause a fire or impair your judgment, which could lead to safety hazards.
    ⧼thumbs_response⧽
Advertisement

Things You'll Need

  • Floor jack
  • Lug wrench
  • Screwdriver
  • Seals (gaskets)
  • Brake fluid
