How to Use a Graphic Equalizer

Co-authored by Jason Williams and Christopher M. Osborne, PhD

Last Updated: December 8, 2022 References Approved

A graphic equalizer, more commonly known as an EQ, is used to change the frequency response of selected sounds, such as particular instruments or vocals in an audio track. It can be used to enhance the bass, reduce the treble, highlight a saxophone, or just make your audio sound better overall. Once you get a handle on the basic operation of your EQ model, you can use it to make simple audio adjustments, then get into more detailed audio fine-tuning.

Things You Should Know

Familiarize yourself with your EQ by looking at it and its controls.
There are automatic settings that can improve the listening experience, but you can also adjust the frequencies manually.
You'll have to adjust the settings based on your environment, such as if it's raining or there is a lot of traffic noise.

Method 1

Method 1 of 3:

Familiarizing Yourself with Your EQ

1

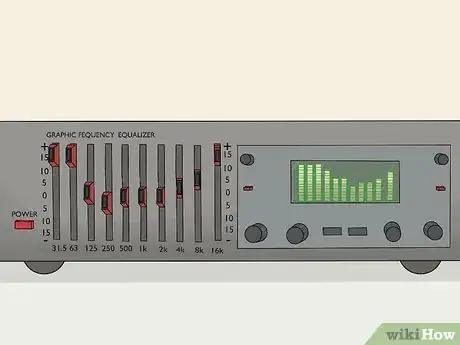

Identify the frequency range and control points for your EQ. Most EQs cover the range of sound wave frequencies that are detectable by the human ear—20 hertz (Hz) on the low end to 20 kilohertz (kHz) on the high end. Your EQ will most likely have 20 Hz marked on its left side, and 20 kHz marked on the right.^{[1]
X
Research source}
- Between the end points, an analog EQ will have a series of vertically-oriented (up-and-down) adjustment sliders. A digital EQ will have a series of marked points spaced out along the horizontal line.
- These sliders or control points are often set at 30 Hz, 100 Hz, 1 kHz, 10 kHz, and 20 kHz. Some models allow you to alter these control point settings, while others are permanently fixed at these frequencies.
2

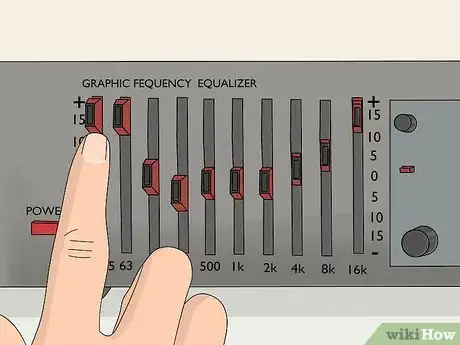

“Boost” upward to intensify a frequency, and “cut” downward to reduce it. With an analog EQ, pushing a slider upward above the horizontal line “turns up” sounds within that frequency range—this is called boosting. Sliding downward “turns down” the sounds in that frequency range, known as cutting.^{[2]
X
Research source}
- With a digital EQ, you typically click on a control point and drag up to boost or down to cut.
- For example, if you wanted to boost audio in the 100 Hz frequency range, you’d either push the 100 Hz slider upward (analog) or click and drag it upward (digital). Or, to cut the 1 kHz frequency range, you’d slide or click and drag down below the horizontal line.
Advertisement
3

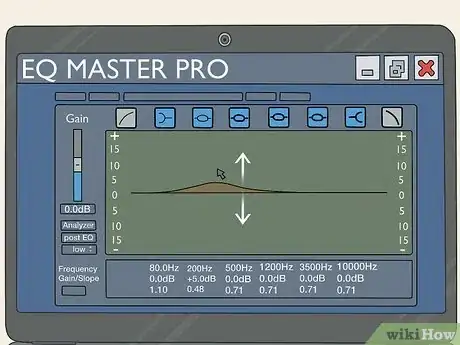

Check for other features like low/high pass filters and Q-range. There are so many different models of EQs, both digital and analog, that it’s difficult to make generalizations on using them. Rely on your user’s manual, or contact the device manufacturer (or app developer) for specific guidance. Your EQ may, for instance, have features such as:^{[3]
X
Research source}
- A low pass filter and high pass filter. A low pass filter lets all frequencies below a certain point “pass through” and blocks all frequencies above that point. A high pass filter does the opposite. For example, you could use a low pass filter to block all frequencies above 10 kHz.
- Q-range adjustments. When you boost or cut a particular frequency, it also impacts surrounding frequencies to lesser degrees—for instance, boosting 100 Hz also boosts 75 Hz and 125 Hz to lesser amounts. Decreasing the Q-range reduces this surrounding impact, while increasing it enhances it.

Method 2

Method 2 of 3:

Adjusting for Your Music and Listening Environment

1

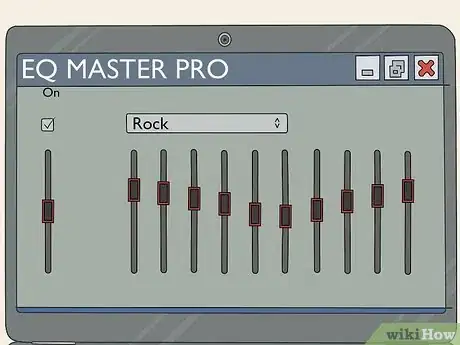

Check any EQ presets for the type of audio you’re listening to. Many stereos, TVs, audio players, and other devices with digital EQ capabilities come with a set of predetermined audio adjustments based on music or audio genre. For instance, your stereo or music app may have presets for “rock,” “jazz,” “classical,” and so on.^{[4]
X
Research source}
- By selecting a preset, the various frequency control points will be “boosted” or “cut” to levels that are considered ideal for a particular type of music or audio.
- Presets provide a quick way to improve the sound of the audio coming through your headphones, earbuds, or speakers.
- Analog EQs don’t usually have presets, since you have to manually adjust the sliders yourself.
2

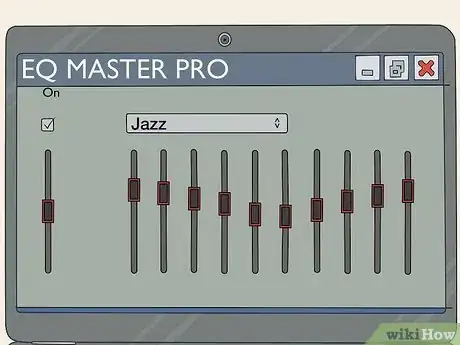

Trust your own ears when making EQ adjustments. Presets are far from perfect, and should be considered starting points. So many factors go into making music sound “just right”—with personal preference at the top of the list—that you should always consider tinkering with any presets.^{[5]
X
Research source}
- The ultimate goal for EQ adjustments is to make the audio sound as perfect as possible to your ears—so trust them! If your ears tell you that the bass needs boosted, adjust the lower frequencies no matter what the presets indicate.
3
Alter your EQ settings when your equipment or conditions change. While personal preference is the number one factor in determining ideal audio, there are numerous other factors at play as well. These include—but aren’t limited to—the quality of your audio equipment, the size and shape of the room or space you’re in, atmospheric conditions, and ambient noises.^{[6]
X
Research source}
- For example, you may find that adding a new carpet and couch to your den alters how the "jazz" preset sounds on your home stereo. You may have to do some tinkering to get the sound just right once again.
4

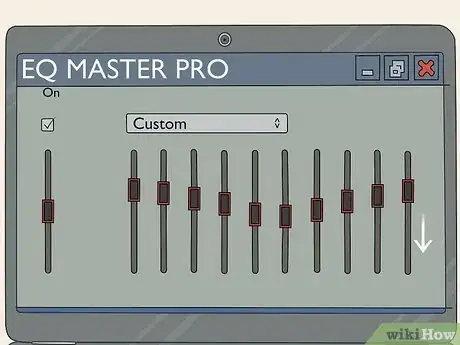

Cut what you don’t want instead of boosting what you do want. If you want to crank up the bass for your favorite rock album, your first instinct will be to boost the lower-end (for instance, 100 Hz) settings. However, you usually get better results by cutting the other settings and leaving the 100 Hz setting in a neutral position.^{[7]
X
Research source}
- Boosting is more likely to add distortions to the audio, especially if you boost a particular frequency range to a significant degree. Cutting is far less likely to cause distortions.
- So, to crank up the bass at 100 Hz, leave it at neutral (or only slightly boosted), and cut the sub-bass at 30 Hz and mid-range sounds at 1 kHz.
5

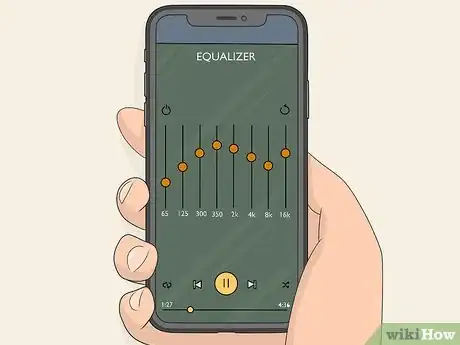

See if a personalized EQ app offers a simple solution for you. Fine-tuning your EQ settings is the best way to get the best audio for your circumstances. In a pinch, however, you might want to use a smartphone app that “learns” how you hear and makes adjustments for you.^{[8]
X
Research source}
- These apps usually start by giving you a short “hearing test” to determine how well you pick up different frequency ranges. It will then create custom-made presets that will automatically adjust based on the type of audio and other factors.
- If you just want your music to sound “pretty good” whenever you put in your earbuds, this may be the best option for you.

Method 3

Method 3 of 3:

Highlighting Different Instruments or Vocals

1
Identify the frequency range of common instruments and vocals. Once you’ve mastered the basics of adjusting the sliders or control points of your EQ, you can make fine adjustments to highlight particular instruments or vocals. With practice, you’ll know where in the frequency range to look for a particular instrument or vocal, but until then, rely on charts like the following:^{[9]
X
Research source}
- Female vocals: 150 Hz-1.6 kHz
- Male vocals: 60 Hz-500 Hz
- Saxophone: 100 Hz-700 Hz
- Guitar: 70 Hz-1.1 kHz
- Cymbals: 200 Hz-10 kHz
- Kick drum: 60 Hz-4 kHz
- Piano: 25 Hz-4.5 kHz
2

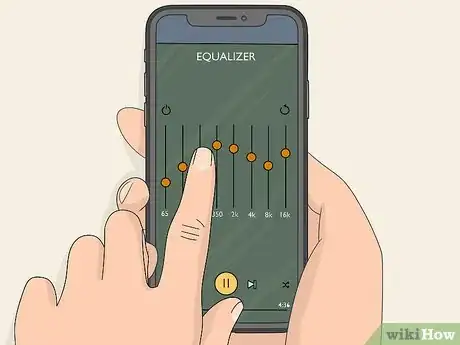

Boost the bar in the chosen range to highlight an instrument. Once you know which frequency range to search in to find a particular instrument or vocals, boost the slider or control point that’s closest to the center of that range. If doing so brings the sound of that instrument/vocal to the forefront, try boosting the surrounding ranges a little to see if that helps or hinders the process.^{[10]
X
Research source}
- You may have to do some searching by trial-and-error to find the instrument or vocal you’re looking to highlight, but keep at it—you will find it!
- As an example, you might boost the 100 Hz setting in search of an electric guitar, and find that it helps to boost the 1 kHz setting as well.
3
Prioritize cutting over boosting once you’ve highlighted an instrument. Once you’ve found the sound you want to emphasize, don’t just maintain a significant boost on the range or ranges where you found the sound. Instead, bring those ranges back closer to neutral and cut the ranges that carry other sounds that you don’t want to highlight.^{[11]
X
Research source}
- In other words: if you want to highlight the electric guitar, it’s better to “cut” the drums, saxophone, and vocals than it is to “boost” the electric guitar significantly.
- Large “boosts” tend to cause audio distortions, which isn’t a problem with “cuts.”
4

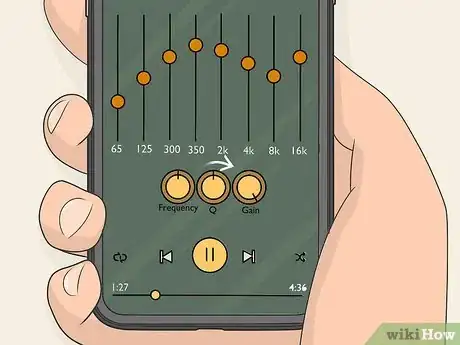

Adjust the “Q” setting if your equalizer has the capability. Narrowing the Q-range decreases the frequency range that is being boosted or cut, while widening it increases the range. This kind of fine-tuning can help you pinpoint the exact instrument or vocals that you want to highlight.^{[12]
X
Research source}
- Q-range is easier to visualize with a digital EQ. In this format, a boosted setting looks like a triangle, with the apex representing the amount of the boost and the sloping sides representing the lesser boosting occuring at other surrounding frequencies. Narrowing the Q-range makes the triangle “skinnier,” which means fewer surrounding frequencies are impacted; increasing Q-range does the opposite.

Community Q&A

Question

Which one is the mid?

Community Answer

On graphic equalizers, generally the center slider(s) control the midrange.
Question

Can an equalizer be used as amplifier?

Community Answer

Not in the sense of making all of the audio more powerful, but you can create the illusion of a more powerful speaker system by changing the equalizer.
Question

Are there some presets for bass settings?

Community Answer

Yes, there are. Players with built-in equalizers typically have presets for many genres, some of which are very bass heavy. Of course, there is no such thing as one perfect preset. Every speaker and headset has its own equalization needs.

Warnings

Start with your speaker volume at mid-range or lower before you start adjusting your EQ. Boosting frequencies while your speaker is at a high setting may cause damage to your speakers or to your hearing.
