How to Add a Wall Switch to Light Fixture Controlled by a Chain

How to add a wall switch to a light fixture that is turned on and off by a chain/cord

Steps

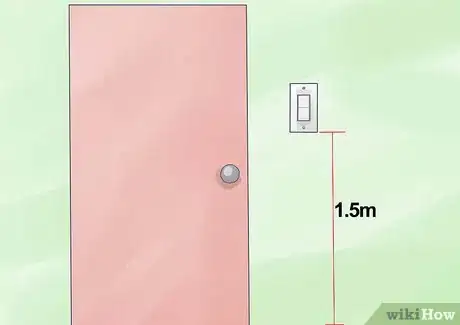

  1. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 1
    1
    Decide where you want to place your switch. Generally wall switches are on the right-hand side, a few feet/metres past the door opening. Go around your house and measure the height of other switches. 60" or 1.5m from the floor is common.

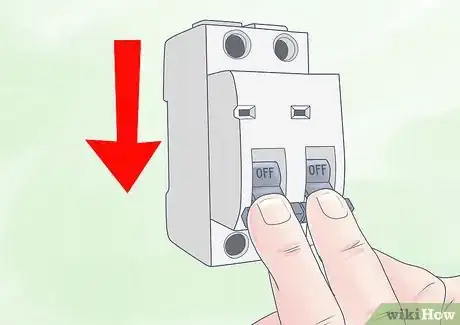

  2. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 2
    2
    Always turn off the power to the fixture. If there are other people in the home, always tell them that you have turned off the power, or leave a note on the breaker/fuse box so someone doesn't accidentally turn it.[1] [2]
    Advertisement

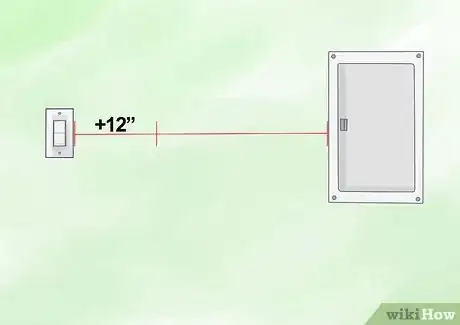

  3. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 3
    3
    Measure the distance from your fixture to the location of your new switch...always add an extra 12" or 30 centimeter (11.8 in) to your measurement - it's always better to have too much electrical wire than not enough.

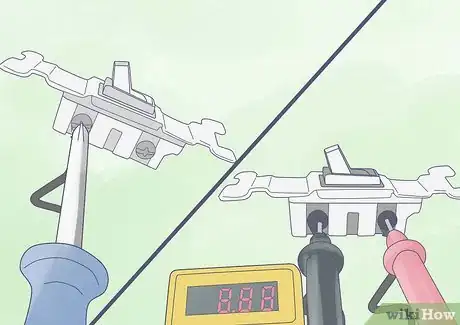

  4. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 4
    4
    Check your fixture with a power tester to ensure that there is no power. Remove the black (or "hot") wire only. Leave the white (or "neutral") and any ground (green or bare) wires on the fixture.[3]

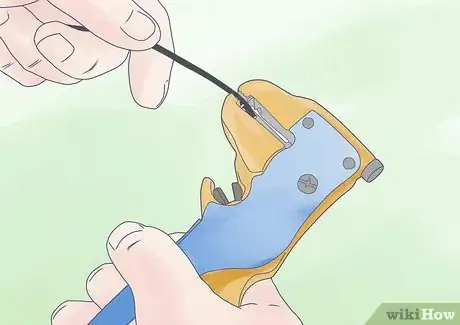

  5. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 5
    5
    Strip 2"/5 centimeter (2.0 in) of the plastic sheathing from the end of the black and white wires.

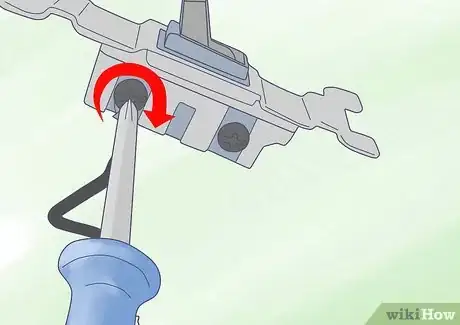

  6. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 6
    6
    Connect the black wire from the electrical cable with the black wire you just removed from your fixture. Always use screw-on wire connectors..never use electrical tape. Ensure that the connection is tight.[4]

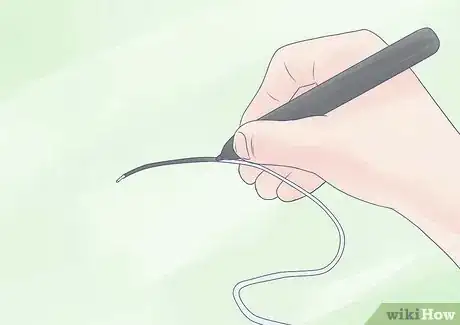

  7. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 7
    7
    Using a black marker, "re-code" the white wire from your electrical cable to black. Mark on the plastic sheathing with a permanent marker so that anyone will know this is now a "hot" wire.[5]

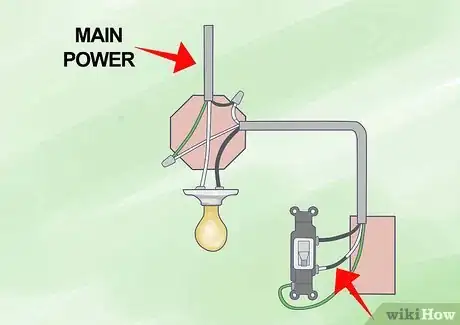

  8. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 8
    8
    Connect your re-coded "hot" wire to the fixture. You should now have a white and re-coded black wire on your fixture.

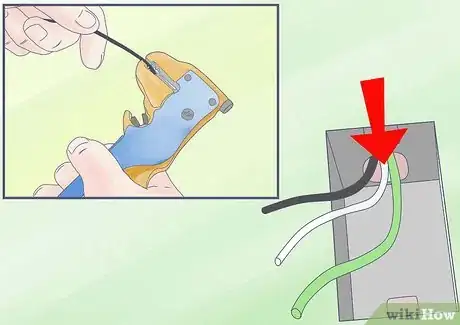

  9. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 9
    9
    At your new wall switch, pull all the wires through the back of the electrical box. Strip black and white wires as in step 5. Connect the ground wire to the electrical box itself (there should be a screw at the back or side of the box).

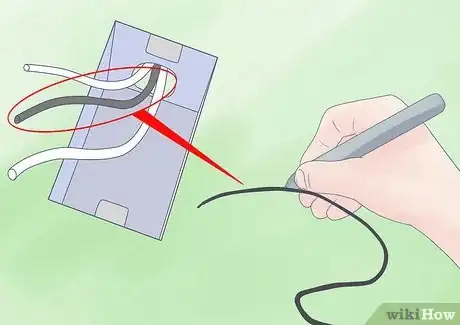

  10. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 10
    10
    You will need to re-code the white wire as a "hot" wire with a marker, as in step 7.[6]

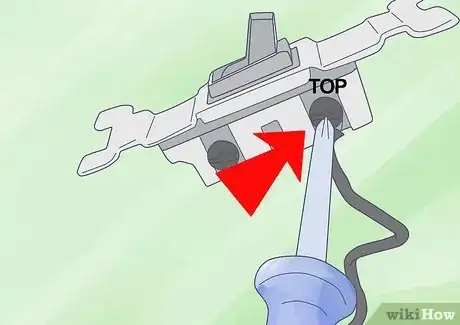

  11. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 11
    11
    Screw the black wire to the top screw on your switch. This will be the top of your switch.

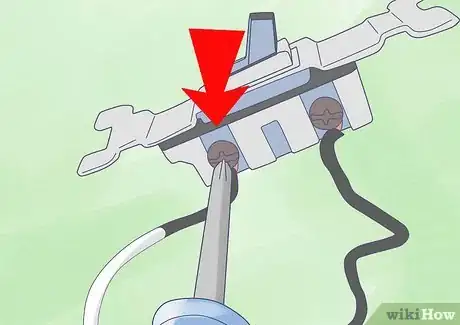

  12. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 12
    12
    Screw your newly re-coded second "hot" wire (white) to the bottom screw. Ensure that both screws are secure and screw the switch into the electrical box. Do not attach the cover until you check that everything functions correctly

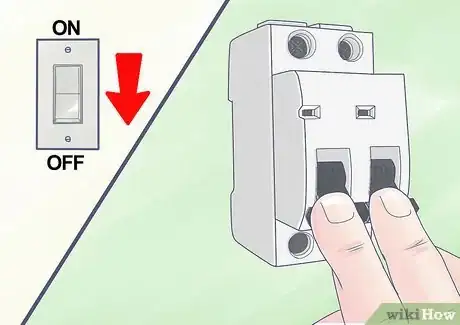

  13. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 13
    13
    Flick the switch to the "off" position, then turn on power to the fixture.

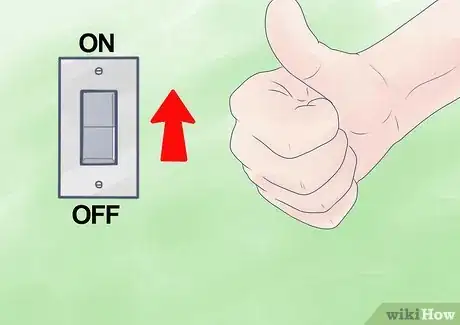

  14. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 14
    14
    Test that your new switch works. If it does not, double check that you have not turned off the fixture from the chain/cord.

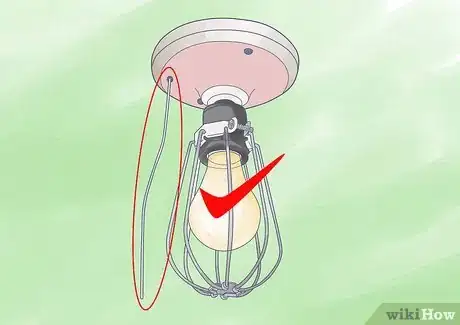

  15. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 15
    15
    You should always leave the light"on" at the chain/cord in order to have full control from the wall switch. You can still use the chain, however this defeats the purpose of having a wall switch.
  16. Image titled Add a Wall Switch to Light Fixture Controlled by a Chain Step 16
    16
    Provided everything works, you can close up your light fixture and attach a switch plate cover.
    17. Advertisement

Community Q&A

  • Question
    How can I add a pull cord to overhead lighting?
    Community Answer
    Community Answer
    You will have to replace the existing fixture with one that includes a pull cord.
  • Question
    I replaced an old outlet from 2 prong to a 3 prong. I replaced the wires exactly haw it was on the old outlet, but my tester reads "hot/neutral reversed." How do I fix this?
    Daverwaterloo
    Daverwaterloo
    Community Answer
    The new outlet may be in a different configuration from the old one. New outlets have a left side that has a wider slot than the right side. The wider (left) slot is the neutral (white), while the narrower (right) side is the hot wire (black). Generally the hot side has a brass screw and the neutral side has a silver screw. You'll need to reverse the wires on the back of the outlet.
  • Question
    The overhead light in my dining room does not turn on after adding new light bulbs. How do I diagnose where the problem is?
    Daverwaterloo
    Daverwaterloo
    Community Answer
    Will it turn on if you remove and/or replace the new bulbs? If so, you just have a defective bulb. If not, there may be a short somewhere in the circuit. To diagnose this, remove the light switch and ensure all the connections are tight and not touching other wires or the electrical box. If the switch is okay, check the light fixture that all the wiring is attached securely and not touching other wires.
Advertisement

Warnings

  • Ensure that it is legal in your country/state to do your own electrical work. If you are at all unsure, get a licensed electrician to do any electrical work in your home.
    ⧼thumbs_response⧽
  • Always do any electrical work carefully and neatly. Double check all connections are tight.
    ⧼thumbs_response⧽
